EG4-WallMount Indoor Battery | 48V 280Ah | 14.3kWh | Indoor | Heated UL1973, UL9540A
The WallMount Indoor 14.3kWh batteries are a reliable solution for low-voltage residential energy storage indoors. Built with lithium iron phosphate cells, they offer top-tier safety and durability. An intelligent Battery Management System (BMS) continuously tracks key metrics, including individual cell voltage, overall module voltage, current, and temperature in real-time. Additionally, the BMS features a passive balancing function and an advanced control system, enhancing the battery pack's overall efficiency and performance.
Includes: (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery. (1) RS485 USB Battery Comm Cable PER (6) BATTERIES
EG4 48V 280Ah WallMount Battery Specs
- Voltage: 51.2V
- Total Energy Capacity: 14.3kWh
- Capacity: 280Ah
- Charging Voltage (Bulk/Absorb): 56.0V (+/-0.8V) to 56.2V (+/-0.2V)
- Float Voltage: 54V (+/-0.2V)
- Low DC Cutoff: 44.8V (adjustable start from 47V to 45.6V)
- Charging Current: Up to 200A (continuous), recommended range: 60A - 160A
- Discharging Current: Up to 200A (continuous), recommended: 160A
- Charging Range: 32°F to ≈113°F
- Discharging Range: -4°F to ≈122°F
- Storage Range: -4°F to ≈122°F
- Overcharging Protection: >205A (10 sec), >225A (3 sec)
- Temperature Protection: <23°F or >158°F (1 sec), less than-5°C or >70°C (1 sec)
- Communication Ports: RS485/CAN Can be customized
- Cycle Life: >8000 Cycles, 80% Depth of Discharge (DOD)
- Design Life: Over 15 Years
- Weight: 282.2 lbs
- Safety Certifications: UL1973, UL 9540A (Testing)
EG4 48V 280Ah WallMount Battery Features
- On-Board LCD Touch Screen: Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
- Dual On-Board Fire Arrestors: Offer fail-safe protection against thermal runaway.
- The Perfect Partner to EG4 Inverters: The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

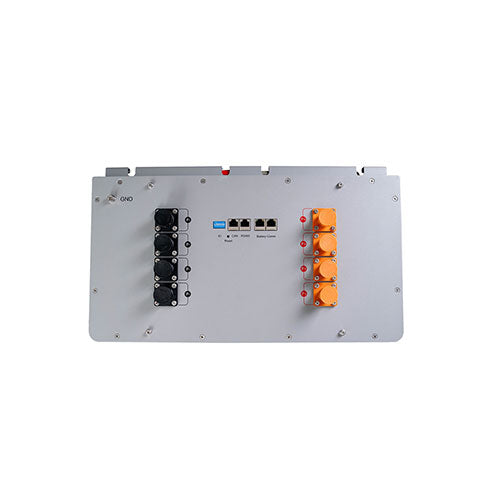

- Integrated Busbars: The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.
- Innovative Emergency Stop Function: The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shut down capability) with the press of a button.
- Integrated Self-Heating Feature: Internal heating keeps cells operating during cold temperatures.
