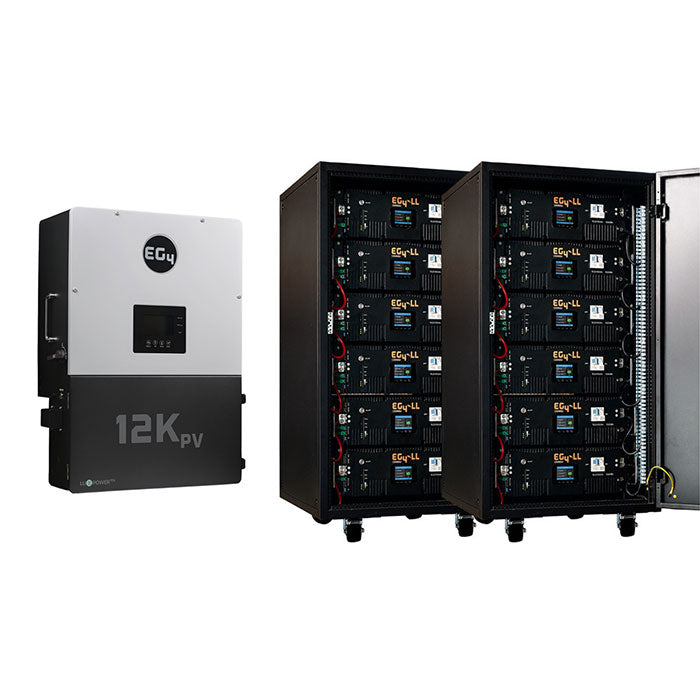

EG4 12kPV Hybrid Solar Inverter with EG4 Lithium Powerwall Battery System Bundle - Complete Home Solar Energy Storage Solution for Off-Grid & Backup Power

Save 45%

EG4 12kPV Hybrid Solar Inverter with EG4 Lithium Powerwall Battery System Bundle - Complete Home Solar Energy Storage Solution for Off-Grid & Backup Power

Sku: 48743313 in stock

$1588950

$2889000

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

7 people viewing this product right now!

Guranteed safe checkout

Description

EG4 12kPV Hybrid Inverter System Bundle - 61.44kWH EG4 Lithium Powerwall

This 48V split-phase hybrid inverter is an ideal solution for rural and suburban homeowners looking to achieve energy independence. Designed for seamless integration with existing systems, it delivers exceptional performance and flexibility for both residential and light commercial setups. Built on the same architecture and firmware as the EG4 18kPV, it efficiently powers connected loads and charges batteries, helping users get the most out of their solar investment.

The EG4 LL Lithium Battery (V2) features sixteen UL-listed prismatic 3.2V cells, engineered for long-term reliability. With testing that supports over 7,000 deep discharge cycles at 80% depth of discharge, this battery is capable of daily full charge and discharge cycles for more than 15 years. It offers an impressive 99% operating efficiency and is designed to perform consistently under demanding conditions.

Continuing the durability and performance of the original model, the EG4 LiFePOWER4 48V V2 battery introduces enhanced features for a better user experience and smoother system integration. This LiFePO4 battery also uses sixteen UL-recognized prismatic 3.2V cells in series, delivering more than 6,000 cycles at 80% DoD. It has a nominal voltage of 51.2V, provides 5.12kWh of energy storage, and includes a built-in 100A Battery Management System for added safety and control.

We highly recommend having your system installed by a certified solar installer or licensed master electrician to ensure safety and optimal performance. Please be aware that your setup may require additional components not included with the base system.

EG4 12kPV Hybrid Inverter System Bundle Features

EG4 12kPV Hybrid Inverter

8kW continuous AC output for homes and small businesses.
MPPTs rated to 12kW, accepts up to 15kW array.
Dual high voltage (120-500 VDC) and high amperage (25A) MPPTs.
Parallel up to 10 units for 80kW output.
Split phase hybrid design for off-grid and grid-tied systems.
Handles up to 4,000W imbalance for 30 minutes.
Fast 10ms transfer time for power outages.
134A surge capacity for high loads.
Export-limiting for controlled power export.
Compatible with generator input for backup power.
RSD/ESS shutdown for safety.
Advanced monitoring and control via EG4 app/website.
Supports multiple power sources (AC/DC).
10-year warranty for reliability.

EG4 LL Lithium Battery (V2)

7,000 deep charge/discharge cycles
15-year life at 80% depth of discharge, up to 20 years
High energy density server rack battery form factor
Selectable closed-loop inverter communications (Victron, EG4)
Parallel up to 16 batteries, up to 80 kWh
Built-in EG4 Smart BMS for voltage, current, temp, and health management
Easy battery bank expansion
On-board LCD screen
Lifetime firmware updates
10-year warranty

EG4-LifePower4 V2 Lithium Battery

Retains robust architecture and high performance
Composed of 16 UL recognized prismatic 3.2V cells in series
Tested for over 6,000 deep discharge cycles at 80% DoD
Nominal voltage: 51.2V, Energy capacity: 5.12kWh, Charge capacity: 100Ah
Internal 100A Battery Management System (BMS) with communication on/off switch
Protocol 6 DIP switch for inverter and battery customization; supports up to 64 batteries in parallel
Enhanced terminal connections, CAN bus and RS485 ports, E-Stop functionality, dual fire arrestors
New 10-year warranty

EG4 12kPV Hybrid Inverter System Bundle Includes

1 X EEG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar Inverter
2 X (Pre-Assembled) EG4 Enclosed Battery Rack | 6 Slot | Wheels Included | Bus Bar Covers | Welded
2 x 96in 2/0 AWG Battery to Inverter Cables | Black and Red
*OPTIONAL* 12 x EG4-LifePower4 V2 Lithium Battery | 48V 100AH | Server Rack Battery | UL1973, UL9540A |
*OPTIONAL* 12 x EG4 LL-S Lithium Battery | 48V 100AH | Server Rack Battery | UL1973, UL9540A
