EG4 12000XP Off Grid Solar Inverter | 48V Split Phase | 24kW PV Input & 12kW Power Output | Perfect for Home Backup Power & RV Solar Systems

Save 45%

EG4 12000XP Off Grid Solar Inverter | 48V Split Phase | 24kW PV Input & 12kW Power Output | Perfect for Home Backup Power & RV Solar Systems

Sku: 78037777 in stock

$208340

$378800

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

28 people viewing this product right now!

Guranteed safe checkout

Description

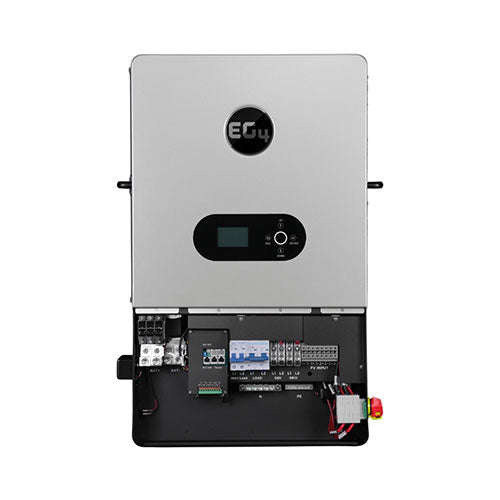

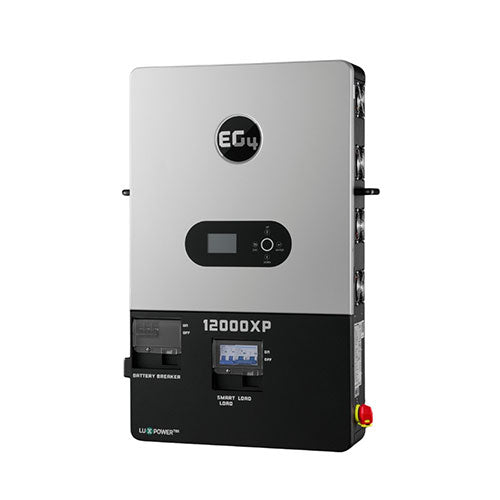

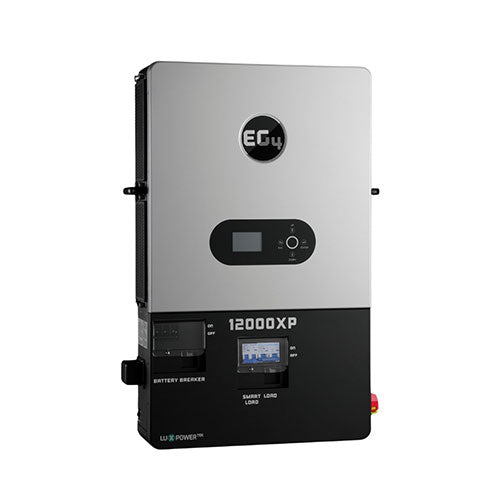

EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output

The EG4 12000XP is a 12kW AC, split-phase, all-in-one off-grid inverter with grid charge capability, ideal for residential and small commercial applications. It supports 24kW of DC solar PV through two 35 Amp MPPTs, delivering 12kW of power at 120/240 VAC. It also accommodates up to 24kW (100 Amps) of utility input or 90 Amps from a generator. The 24kW maximum DC solar input allows for rapid battery charging, even while supporting AC loads up to 12kW. With a 100 Amp bypass for smooth power transitions, the 12000XP ensures reliable operation both off-grid and during outages.

Featuring a generator port with 2-wire start/stop auto-start and a programmable Smart Port for smart load control or AC coupling, the 12000XP is versatile and efficient. It can be paralleled with up to six units for a total output of 72kW, making it a cost-effective solution for those not requiring grid sellback. When paired with EG4 batteries, it offers true whole-home backup.

EG4 FlexBOSS21 + GridBOSS Specs

Max output: 12kW to each of Loads and Batteries
Number of MPPTs: 35A/35A, gives flexibility of 2 strings per input
Max generator input: 63A
Max grid passthrough: 100A (AC Grid output 50A @ 240VAC)
AC Input: 120/240VAC | 50/60 Hz
Surge Capacity: 18kW (5 seconds)
Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
Operating Temperature: 32°F – 113°F
Dimensions: 34.3×20.9×5.9 in
Weight: 104.7 lbs

EG4 FlexBOSS21 + GridBOSS Features

Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.

Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.
Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.

Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.
Perfect for homes wanting to break free from grid reliance.
Robust enough to handle demanding off-grid requirements.
