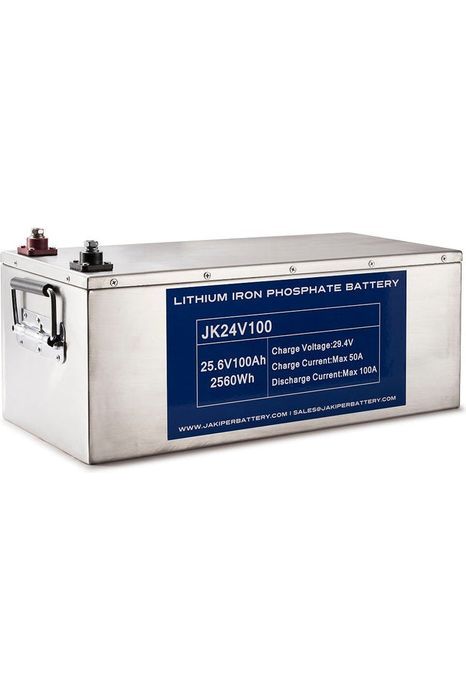

2 x Jakiper 24V 100AH Lithium Iron Phosphate Batteries | 5,120wH / 5.2kWh 24V or 48V | 2 x JK24V100 LiFePO4

2 Pack of Jakiper 24V 100AH Batteries. 5.12kwh, 24V or 48V systems.

Main Specs of JK24V100:

1. Big Mosfet BMS Included
2. 4000 Times Cycle Life
3. 50A Max Charge Current | 100A Max Discharge Current
4. Light Weight
5. 10-Year Warranty!

More Features and Benefits of Jakiper 24V 100AH Lithium Solar Battery:

• >4000 Cycles at 80% depth of discharge
• Stanless steel case
• Create 24 Volt Storage Systems
• Connect in serial up to 48V System
• Unlimited parallel
• Automatic system cell balancing
• Unique big mosfet BMS
• Temperature monitoring (high and low cut-off)
• Exceptional voltage stability
• Maintenance-free
• No hydrogen generation or gassing
• <70% the weight of similarly sized SLA batteries

JK24V100 Specifications:

• Nominal Voltage:  25.6 V
• Nominal Capacity:  100 Ah
• Dimension (LxWxH):  18.34 × 7.87 × 7.08“
• Approx. Weight:  57 lbs
• Capacity: @ 20A 300 min
• Energy:  2560 Wh
• Resistance:  < 40mΩ
• Self Discharge:  < 3%
• Cells:  3.2V 100Ah Cells

Charging:

• Recommended Charge Current:  20 A
• Maximum Charge Current:  50 A
• Recommended Charge Voltage:  29.2 V
• BMS Charge Cut-Off Voltage:  > 29.2 V (3.65 V/Cell)
• Reconnect Voltage:  < 28.8 V (3.6 V/Cell)
• Balancing Voltage:  > 28.8 V (3.6 V/Cell)
• Maximum Batteries in Series:  2
• Maximum Continuous Dishcarge Current:  100 A
• Peak Discharge Current:  200 A ( 3s)
• BMS Discharge Current High Warning:  125 A
• BMS Discharge Cut-Off Current:  330 A (10ms)
• Recommended Low Voltage Disconnect:  22.4 V
• Low Voltage Warning:  22.4 V ( 2.8 V/Cell*8)
• BMS Discharge Cut-Off Voltage:  < 20.8 V ( 50 ~ 150ms) ( 2.6 V/Cell)
• Reconnect Voltage:  >23.2 V ( 2.9 V/Cell)
• Short Circuit Protection:  200 ~ 500 μs

Connections & Specs:

• Terminal Type:  M8
• Terminal Torque:  80 ~ 100 in-lbs ( 9 ~ 11N·m )
• Case Material:  Stainless Steel
• Recommended Connection Wire:  6 AWG
• Temperature Sensor Quantity:  1 pcs
• Discharge Temperature:  – 4 ~ 140 °F ( – 20 ~ 60 °C )
• Charge Temperature:  – 32 ~ 113 °F ( – 0 ~ 45 °C )
• Storage Temperature:  – 23 ~ 95 °F ( – 5 ~ 35 °C )
• BMS High Temperature Cut-Off:  149 °F ( 65 °C )
• Reconnect Temperature:  131 °F ( 55 °C )
• Enclosure Protection:  IP50
